Photo Task Creator

Photo Task Creator React component displays a UI for defining of a new task for the farmer to collect photos of the agricultural parcel.

User interactions​

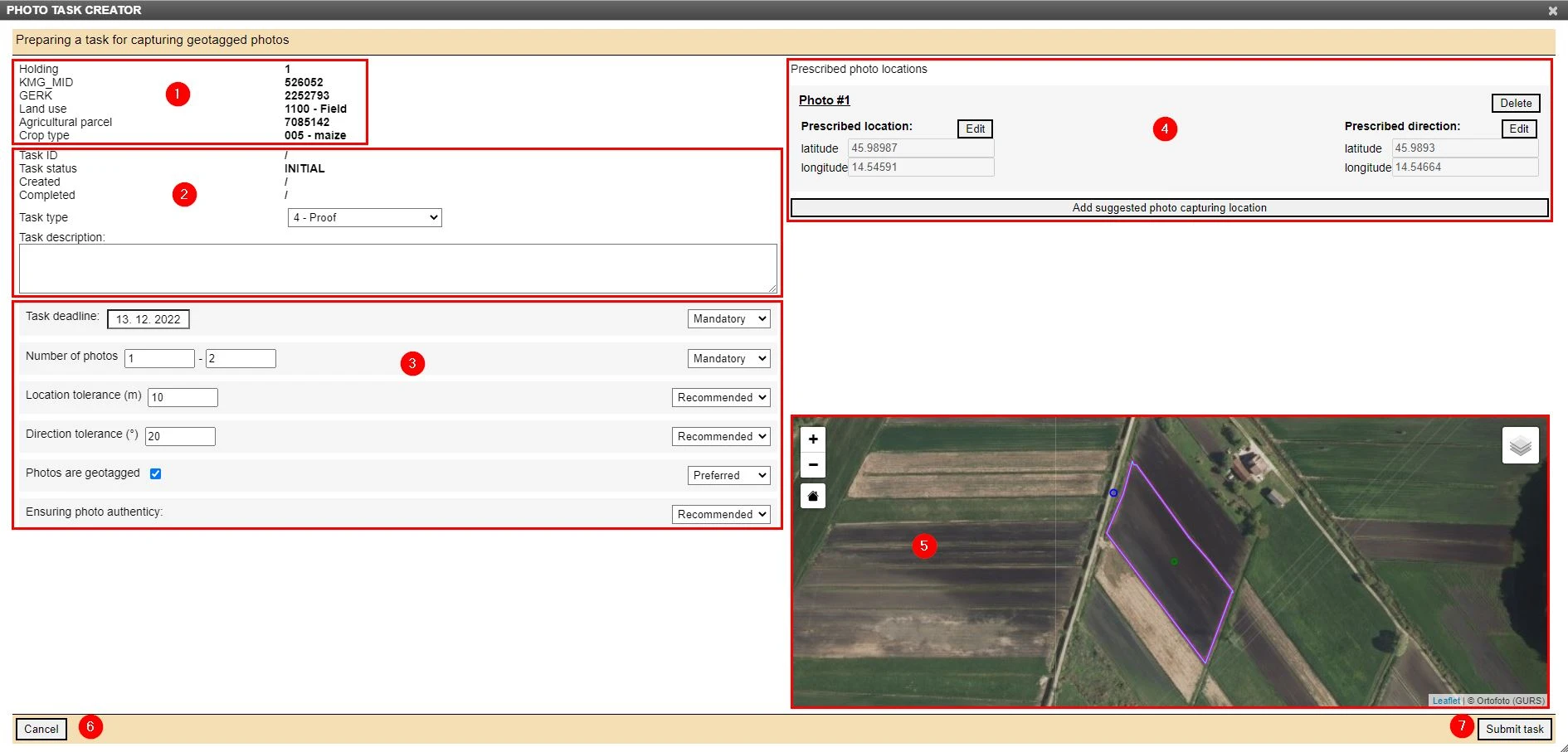

Photo Task Creator has several elements for the definition of the required capturing of geotagged photos:

  • (1) Basic information of agricultural parcel for which photos are required
  • (2) Basic information about the photo task:
    • User selects task type from drop-down list and writes task description in the text input area
  • (3) Additional parameters of photo task:
    • The user defines parameters (for example, number of photos required) and marks the level of obligation from the drop-down list
  • (4) Prescribed photo location(s)
    • The user can add suggested photo-capturing location(s) and delete already created ones
    • For each photo, user defines the prescribed location and direction by manually writing longitude and latitude in the text box or clicking on digital map (5)
  • (5) Map display of agricultural parcel (and prescribed photo locations)
    • By default digital orthophoto is displayed as a base layer
  • (6) button to cancel photo task creation
  • (7) button to submit photo task and send it to the farmer

Photo task creator API​

Usage​

<PhotoTaskCreator
  baseUrl="https://am-pilot.sinergise.com/photo/"
  amServicesAuthToken={AMServicesAuthToken}
  customerId="68746bcc-5cc3-11ec-8b8f-002b6781cd11"
  scope="SI22"
  holdingId="100200300"
  agriParcelId="17495599"
/>

Component name​

The component name PhotoTaskCreator should be used when providing the props.

Props​

The props of the Photo Task Creator React component are described in the table below.

NameTypeDefaultDescription
scope*stringReference data differentiator (for example, SI22). For more details see the scope.
baseUrl*stringThe (base) URL (for example, https://am-test.sinergise.com/photo) at which the endpoints for photo service are. It can include the trailing slash or not.
amServicesAuthToken*string or callback (() => string)AM services authentication token. Either as a string or a function that returns a string.
customerId*stringCustomer ID (for example, 68746bcc-5cc3-11ec-8b8f-002b6781cd11) for photo-service context.
holdingId*stringHolding reference ID (for example, 500611).
agriParcelId*stringAgricultural parcel (type of FOI) reference ID (for example, 6514199)
onClose*callback () => voidCallback that is executed after close button click.

* indicates mandatory props
