Pixel Mowing
Aggregated Pixel Mowing

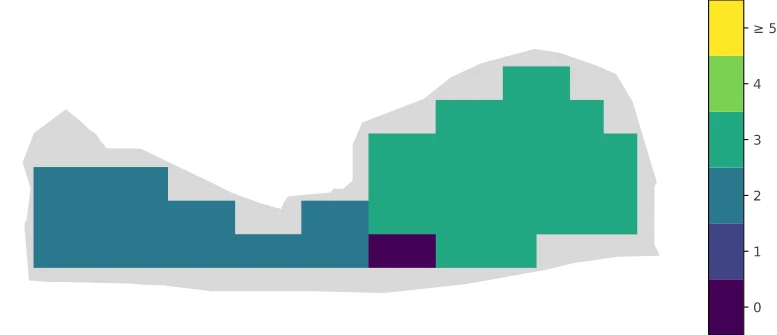

The aggregated pixel mowing (REST) API is the visualization service endpoint that returns the imagery of a FOI (feature of interest) and the number of mowing events detected in each FOI pixel.
REST API
Basic info
- visualization service base URL:
https://am-pilot.sinergise.com/visualization - pixel mowing endpoint
/markers/agg-pixel-mowing - HTTP method:
GET
Parameters
| Parameter | Type | Description |
|---|---|---|
inferenceId* | string | Inference ID of pixel mowing marker. |
markerId* | string | Marker ID for which to display the imagery of the FOI and the number of mowing events detected in each FOI pixel. |
* indicates a mandatory parameter
Response
Responses can include one of the following status codes, in addition to content data.
| Status Code | Content Type |
|---|---|
200 OK | image/svg+xml |
401 Unauthorized | application/json |
403 Forbidden | application/json |
404 Not Found | application/json |
500 Internal Server Error | text/plain |
Example
Below cURL command demonstrates the usage of the endpoint request.
curl --request GET \
--url https://am-pilot.sinergise.com/visualization/markers/agg-pixel-mowing?inferenceId=DEMO.INFERENCE.461&markerId=DEMO.MARKER.461-6184252001 \
--header 'Authorization: Bearer <authorization-token>'
Event Pixel Mowing

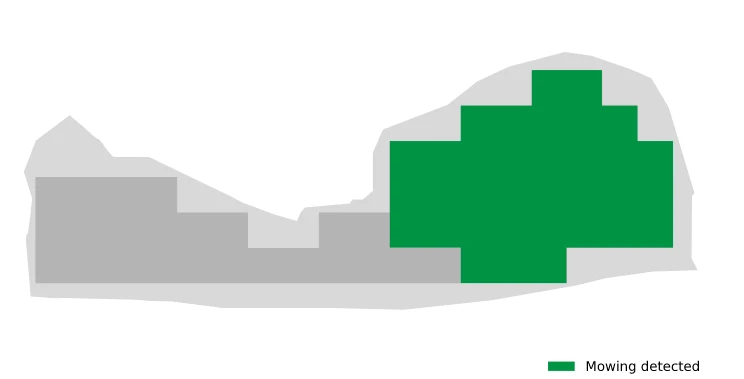

The event pixel mowing (REST) API is a visualization service endpoint that returns the imagery of the FOI and the FOI pixel for the requested mowing event.
REST API
Basic info
- visualization service base URL:
https://am-pilot.sinergise.com/visualization - pixel mowing endpoint
/markers/event-pixel-mowing - HTTP method:
GET
Parameters
| Parameter | Type | Description |
|---|---|---|
inferenceId* | string | Inference ID of pixel mowing marker. |
markerId* | string | Marker ID for which to display the imagery of the FOI and the FOI pixel for the requested mowing event. |
eventIndex* | string | Mowing event index for which to display the imagery of the FOI and the FOI pixel. |
* indicates a mandatory parameter
Response
For information about the response codes, see Response.
Example
Below cURL command demonstrates the usage of the endpoint request.
curl --request GET \
--url https://am-pilot.sinergise.com/visualization/markers/event-pixel-mowing?inferenceId=DEMO.INFERENCE.461&markerId=DEMO.MARKER.461-6184252001&eventIndex=0 \
--header 'Authorization: Bearer <authorization-token>'
