Markers Summary

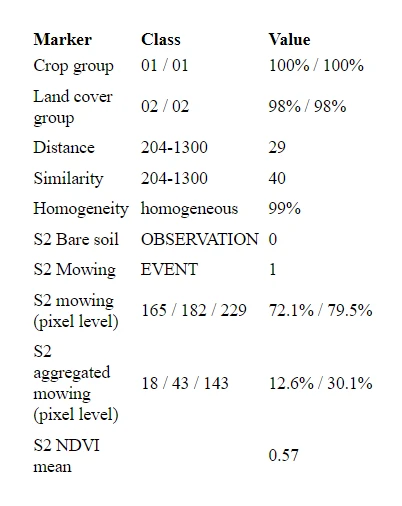

The Markers Summary React component is used to display a summary of markers (for example, crop group, land cover group, distance, similarity, homogeneity, bare soil, mowing, pixel mowing, mean NDVI) for selected Feature of Interest (FOI) and marker context, that can be filtered by Sentinel Hub (SH) collection type.

Markers summary API

Usage

<MarkersSummary
  amServicesAuthToken="AUTH_TOKEN"
  foiId="DEMO.FOI.6784488001"
  height={500}
  language="en"
  markerContextId="DEMO.MARKER_CONTEXT.130"
  markerServiceUrl="https://am-pilot.sinergise.com/marker"
  scope="DEMO"
  shCollectionTypeId="DEMO.CL_SH_COLL_TYPE.1"
  markerTypeGroups={[
    'LAND_GROUP_PREDICTION',
    'CROP_GROUP_PREDICTION',
    'SIMILARITY',
    'DISTANCE',
    'HOMOGENEITY',
    'BARE_SOIL',
    'MOWING',
    'PIXEL_MOWING',
    'PIXEL_MOWING_AGGREGATION',
    'OLD_PIXEL_MOWING',
    'MEAN_NDVI',
    'GREENING_HARVEST',
  ]}
  width={300}
/>

Component name

The component name MarkersSummary should be used when providing the props.

Import

import { MarkersSummary } from '@area-monitoring/react-components';

import '@area-monitoring/react-components/style/all.css';

Props

The props of the Markers Summary React component are described in the table below.

Prop	Type	Default	Description
amServicesAuthToken*	string or callback (() => string)		The AM services authentication token. Either as a string or a function that returns a string.
markerServiceUrl*	string		The (base) URL at which the endpoints for markers are.
scope*	string		The reference data differentiator. For more details see the scope.
foiId*	string		The fully qualified ID of a FOI.
markerContextId*	string		The fully qualified ID of a marker context.
shCollectionTypeId	string		The fully qualified ID of a SH collection type. If provided used to filter shown marker summaries by SH collection type.
width	number	100%	The width of the component in pixels. Takes as input the number 100 or "100" number as a string. If the input is empty or wrong the component will default to 100% css style and infer its size in pixels on its own.
height	number	100%	The height of the component in pixels. Takes as input the number 100 or "100" number as a string. If the input is empty or wrong the component will default to 100% css style and infer its size in pixels on its own.
language	string	en	The selected language at the time of rendering. Options are: sl - Slovenian, en - English, de - German.
markerTypeGroups* (if markerTypeIds is not defined)	array		The array of marker type groups. The shown markers.
markerTypeIds* (if markerTypeGroups is not defined)	array		The array of marker type IDs. The shown markers.

* indicates mandatory props
